Product Details
1. Use only a few extrusion sections, High versatility, Save mold and production costs;
2. Small visual areas, The visible surface of the frame is 61.5mm, sash is 60.5mm and threshold is 48mm. For the 431 style folding door, when fully opened, the visible surface of the three door leaves is only 257.2mm;
3. Equipped with adjustable and non-adjustable hinges, sliding bolts and multi-point lock, It has stable locking, efficient assembling and simple installation;

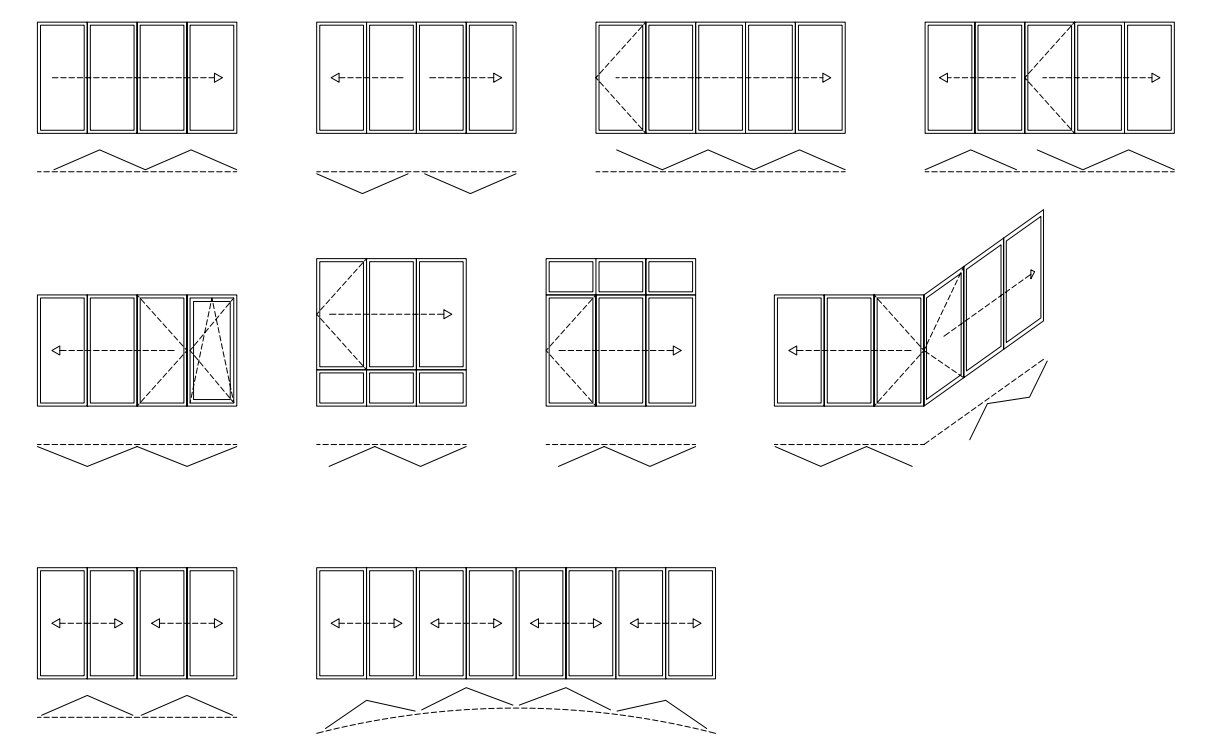

4. It can have built-in rails, lower load-bearing structure and centered sash gravity center. It can be opened in different ways, 330, 431, 550, 633, 651, 770, 871, 853, can have a width up to 7.2 meters;
5. Multiple sealing strips are used for frame and sash. Otherwise,it has sealing strips around hinges. Together with the frame sash sealing strips, they form an enhanced seal. It has specific accessories to improve the sealing effect. It has hidden drainage and equal pressure design to achieve high Water tightness(Grade 6), air tightness (Grade 8), in this way it could meet the requirements of different users;
6. The threshold connector can improve the stability and efficiency of assembling the threshold and the frame, It’s also designed with a drainage channel. Together with the hidden drainage and equal pressure design, it effectively ensures the drainage effect and appearance;
7. There is a 13mm gap between the sash and the frame, and between two sashes. Adult's fingers will not be pinched.
8. The frame sections of EL70 can be connected with corners of ES70 , which greatly improves the diversity.
Product Parameters
| Product name | Aluminum Bifold Door |
| Profile | High Strength Aluminum Alloy |
| Aluminum Material Grade | 6060-T66 |
| Glass (Optional) | Fuly Tempered/Energy Efficient Low-E Coating/Argon Gas Filed |
| Surface treatment | Powder Coated Smooth Finished |
| Adjustable Dimensions | After installation, the height and width of the panels can be adjusted |
| Customization Servic | Full Custom Order for Size, Configuration, and Finish |
| Roller System | Smooth-gliding Heavy-Duty Nylon Rollers |
| Certification | Complies with AS2047 Australian Standard |

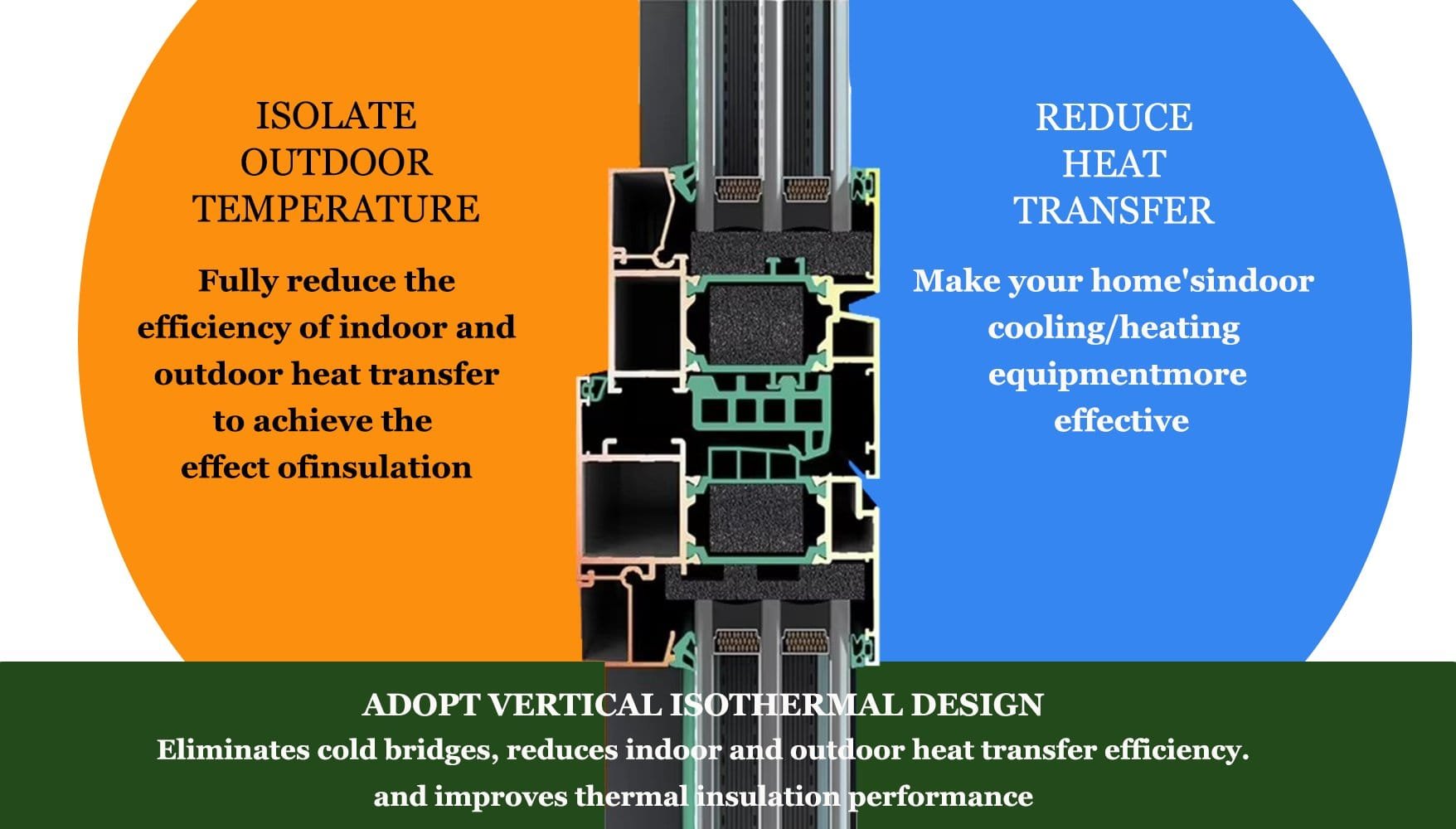

| Advantage | Heat Insulation.Waterproof.Soundproof |
Various Design Requirements

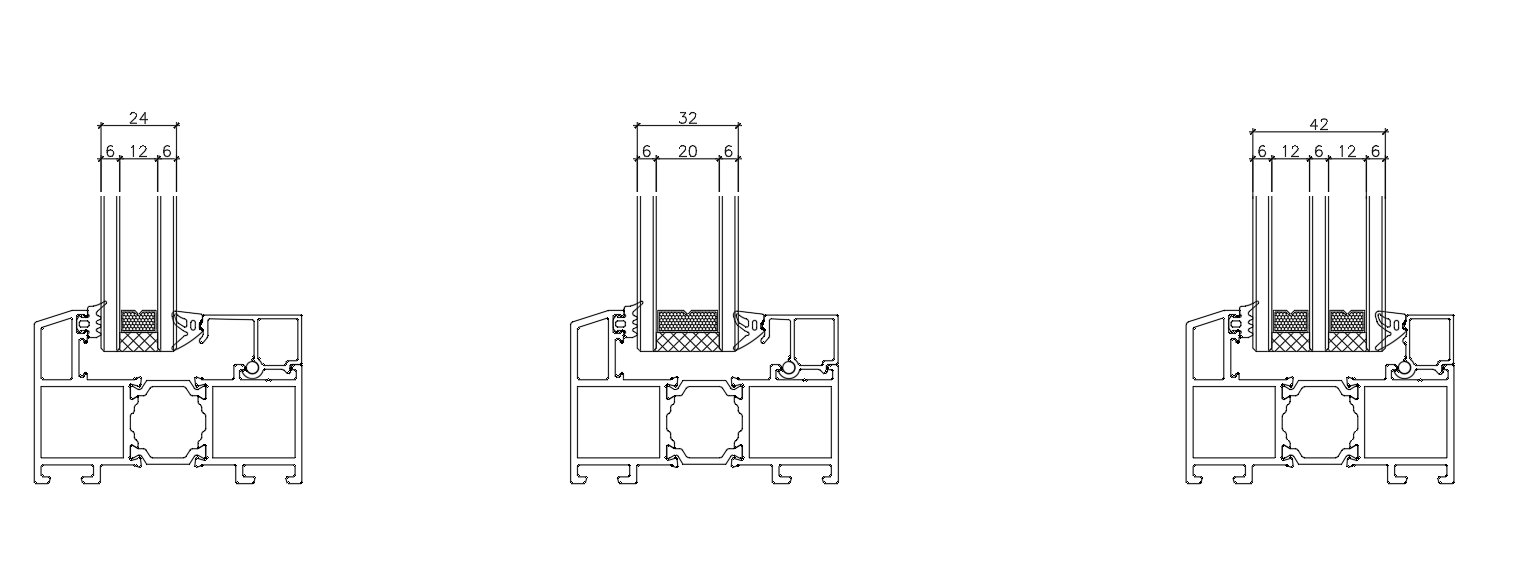

Various Design Requirements Standard Glass Thickness(24mm-42mm)

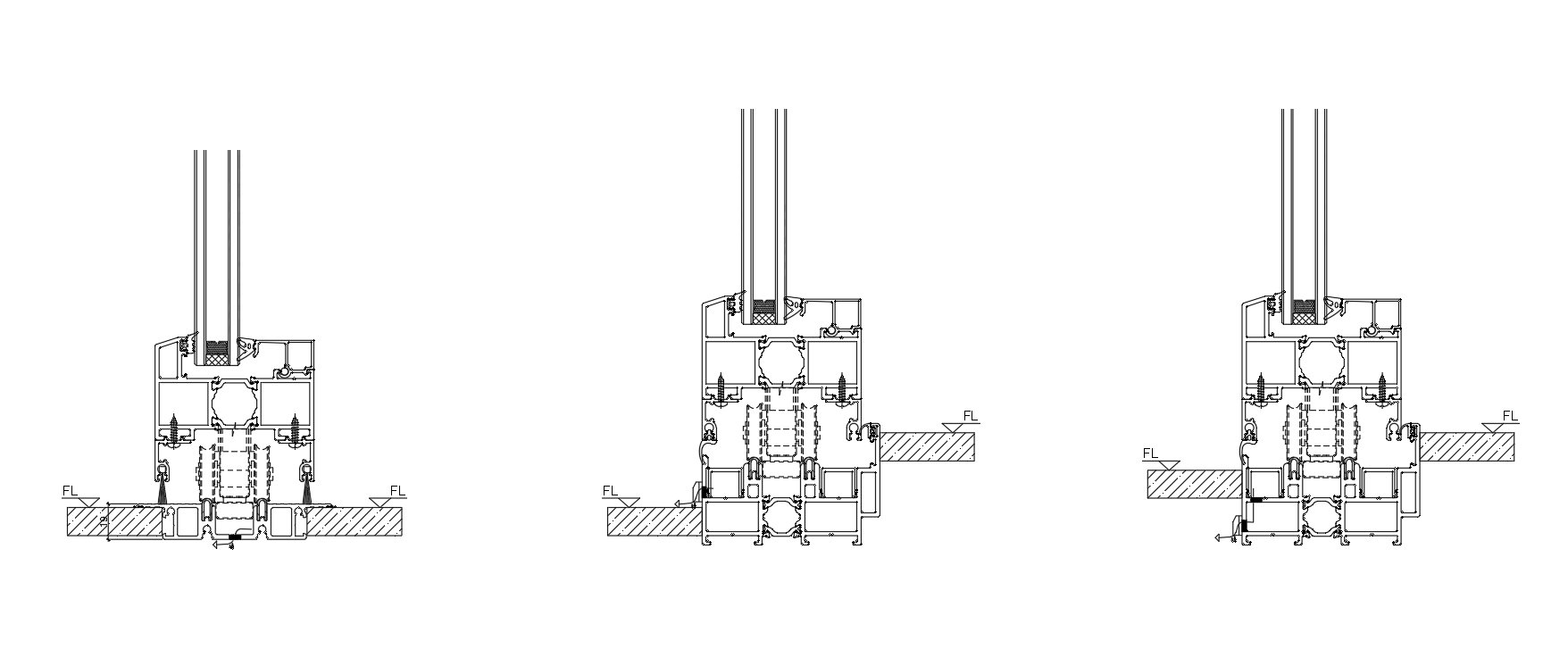

Differebt Solutions For Lower Orbit

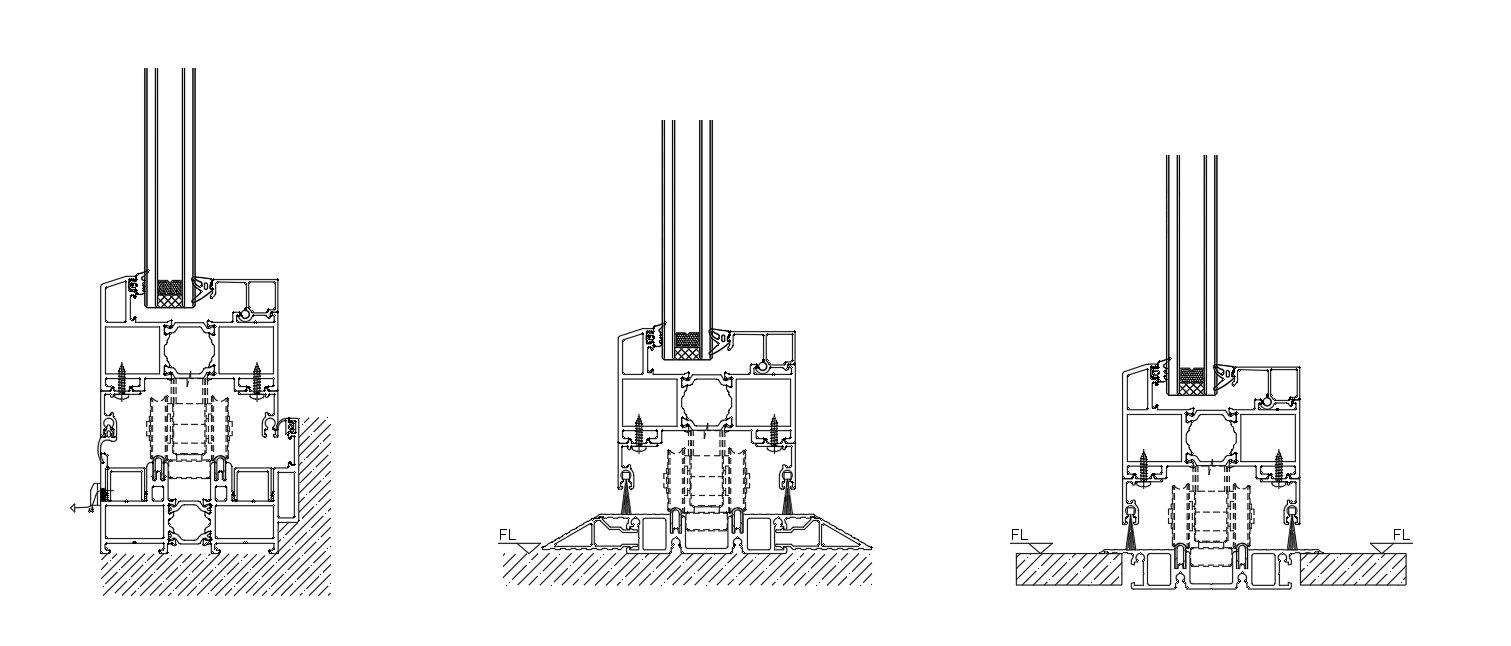

Various Drainage Schemes
FAQ
Q: How can I trust your company?
Brilliance was founded in the year 2000. We are a gold supplier with over 19 years of experience on Alibaba. The EOSS system is our proprietary system, which we have researched and developed for more than 6 years.
Q: Are you a Trading Company or a Manufacturer?
We are 100% a real manufacturer, with five factories including one specialized in window and door processing.
Q: What certificates have you got?
For aluminium profiles, we obtained CE certification in 2017. For windows and doors, our EOSS system has passed testing by PHI from Germany.
Q: What is your MOQ?
For aluminium profiles, 2 tons is acceptable. For the EOSS system doors and windows, we can first help you complete a sample room.
Q: Do you accept customized designs and sizes?
Yes, we can work according to your design and ideas, and then develop a plan for you.
Q: Should we purchase all accessories, including hardware, from you?
For hardware, EOSS system products are compatible with European standards. You may choose any brand worldwide. For special designs and accessories, we will provide them along with the doors and windows.
Q: Which kind of powder can we choose?
You can choose from Brilliance's own high-quality powder coatings, Akzo Nobel, PPG, Tiger and so on.
