1. Minimalist Frames: Frame visible surface is approx. 62mm and sash approx. 60mm, maximizing glass area for uninterrupted views.
2. Effortless & Secure Operation: Experience buttery-smooth folding and locking with stainless steel hardware that secures your space while being easy to operate daily.
3. High-Capacity Structure: Reinforced main profiles with wall thicknesses from 1.8mm to 2.5mm allow for spans up to 8m and support individual sashes weighing up to 200kg.

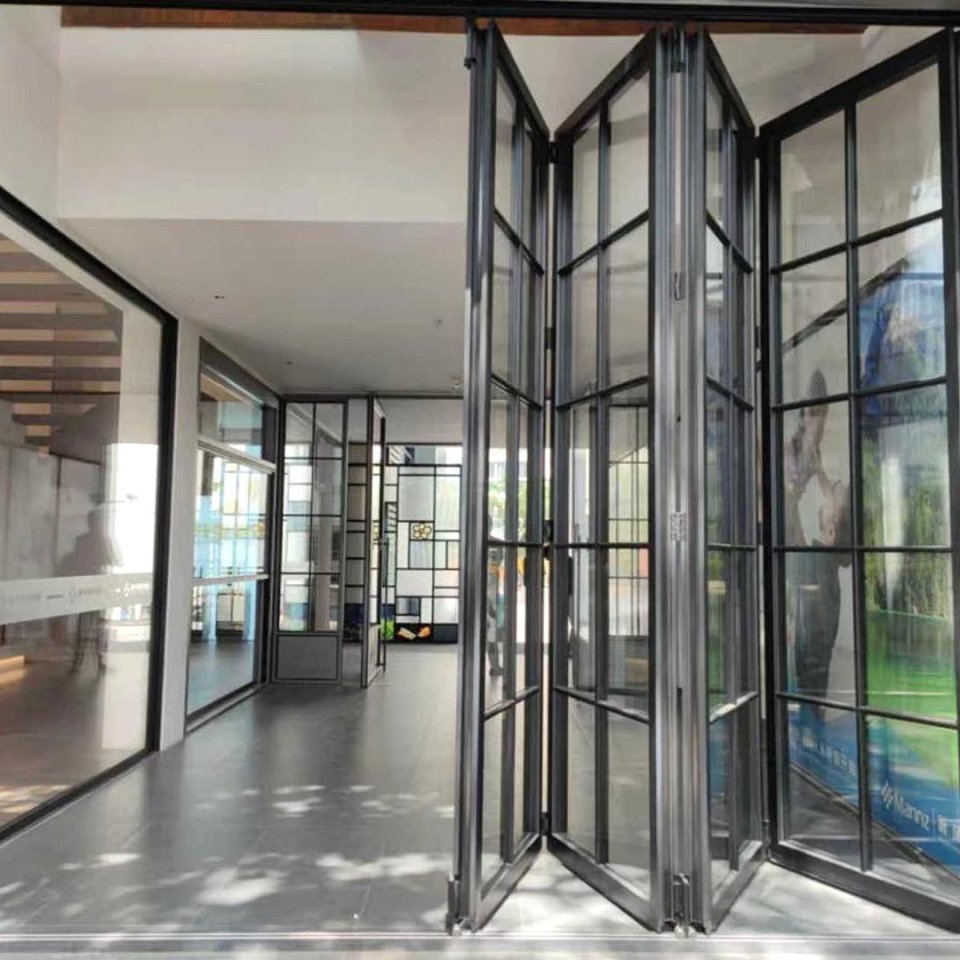

4. Open Up Your Space: Slide and fold to create expansive openings up to 8 meters wide.
5. For Seaside Villas: Corrosion-resistant hardware and Class 6 watertight seals withstand salt spray and coastal storms, ensuring longevity in marine environments.
6. Morning Light, Unfiltered: Wake up to floor-to-ceiling glass that frames your garden view like a living painting, with barely-there 60mm edges.
7. Rapid Assembly Design: Pre-assembled hardware kits and coded extrusion profiles reduce on-site installation time by up to 30% compared to conventional systems.
8. Recycled Content Ready: Extrusion profiles are manufactured using high-recycled-content aluminum (up to 70%) without compromising structural performance or finish quality.
9. Versus Sliding Doors: Folding design opens 100% of the opening width, while sliders only provide 50% access—ideal for seamless indoor-outdoor flow.
10. North American Market: Engineered to meet AAMA/WDMA standards for air and water infiltration; optional impact-rated glazing for hurricane-prone coastal regions.
Product Name | Aluminium Folding Sliding Door |
Profile | High Strength Aluminum Alloy with ultra-narrow 60mm sash visible surface |
Aluminum Material Grade | 6060-T66 – Built to last with premium structural integrity |
Glass (Optional) | Fully Tempered / Low-E Coating / Argon Gas Filled (5mm-32mm options) |
Surface Treatment | Powder Coated Smooth Finished – Sleek, modern, customizable |
Adjustable Dimensions | After installation, panels can be aligned for perfect operation |
Customization Service | Full Custom Order – Designed around how you actually live |
Roller System | Smooth-gliding Heavy-Duty Nylon Rollers – Pre-installed for consistency |
Certification | Complies with AS2047 Australian Standard – Tested and trusted |
Advantage | Heat Insulation / Waterproof / Soundproof – Keeps your home cozy year-round |
What are the visible frame dimensions? | Frame visible surface is approx. 62mm and sash approx. 60mm, maximizing glass area for uninterrupted views. |
Is the door easy to operate daily? | Yes, experience buttery-smooth folding and locking with stainless steel hardware that secures your space while being easy to operate daily. |
What is the maximum span and load capacity? | Reinforced main profiles with wall thicknesses from 1.8mm to 2.5mm allow for spans up to 8m and support individual sashes weighing up to 200kg. |
How wide of an opening can I create? | Slide and fold to create expansive openings up to 8 meters wide. |
Is it suitable for coastal homes? | Yes, corrosion-resistant hardware and Class 6 watertight seals withstand salt spray and coastal storms, ensuring longevity in marine environments. |
What is the visual experience like? | Wake up to floor-to-ceiling glass that frames your garden view like a living painting, with barely-there 60mm edges. |
How long does installation take? | Pre-assembled hardware kits and coded extrusion profiles reduce on-site installation time by up to 30% compared to conventional systems. |
Is it environmentally friendly? | Extrusion profiles are manufactured using high-recycled-content aluminum (up to 70%) without compromising structural performance or finish quality. |
How does it compare to sliding doors? | Folding design opens 100% of the opening width, while sliders only provide 50% access—ideal for seamless indoor-outdoor flow. |
Does it meet North American standards? | Engineered to meet AAMA/WDMA standards for air and water infiltration; optional impact-rated glazing for hurricane-prone coastal regions. |
